Product Specifications
Compatible Part Number |
SFP-10G-LR |
Brand |
FB-LINK |
Form Factor |
SFP+ |
Data Rate |
10Gb/s |
Wavelength |
1310nm |
Max Transmission Reach |
10km |
Connector |
Duplex LC |
Transmit Optical Power |
-8.2 ~ 0.5 dBm |
Receiver Sensitivity |
< -14.4 dBm |
Fiber Core Size |
9/125μm Single Mode |
Power Consumption |
< 1.2W |
Modulation |
NRZ |
Digital Diagnostic Monitoring (DDM) |
Supported |
Laser Type |
FP 1310nm |
Operating Temperature |
0 ~ 70°C |
Features
◆ Hot-pluggable SFP+ form factor
◆ Maximum data rate up to 10Gb/s
◆ Power consumption < 1.2W
◆ Commercial operating temperature range: 0°C ~ 70°C
◆ Receiver sensitivity < -14.4dBm
◆ Maximum reach of 10km over single-mode fiber (SMF)
◆ Compliant with IEEE 802.3ae standard
◆ Equipped with 10G DFB transmitter and 10G APD receiver

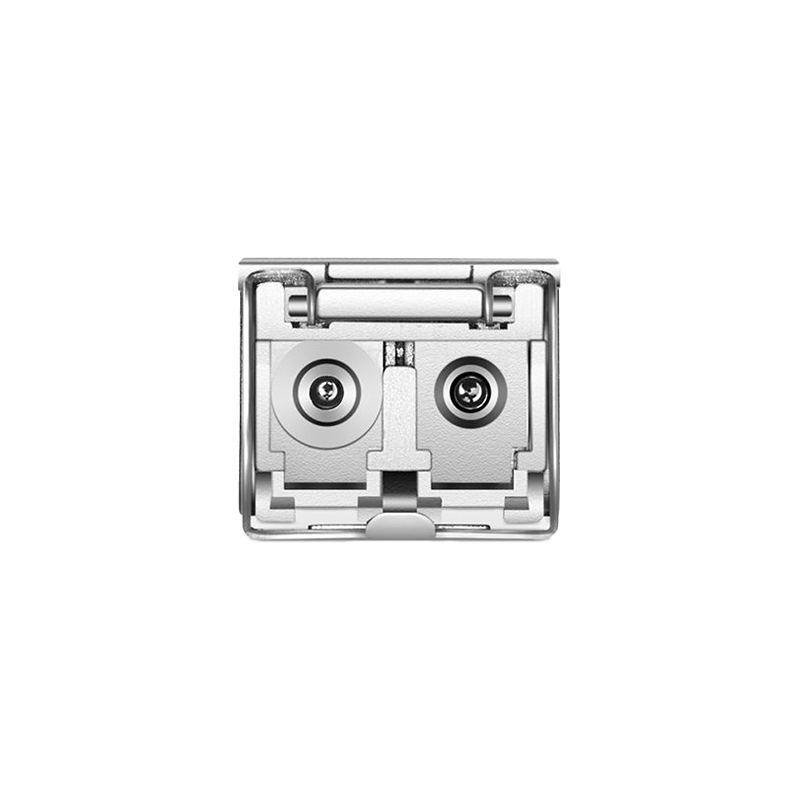

◆ Duplex LC connector
◆ I2C management interface
◆ RoHS compliant
